50AMP Rated
"COOL ONE" PANEL Mount Solid State Relay Assembly
Anacon's "Cool One" heat sink designs provide a thermally optimized Panel mounting platform for today's high performance solid state relays. The listings below provide the actual load currents that each part type will support. If you're not sure about how to select the correct product for your application, call Anacon, toll free and discuss your application with us. (800-466-9080)
50A Panel Mount SSR Assembly Dimensions:
6.0" x 4.75" x 3.0"
Standard "Cool One" Features:
-
All Anacon Solid State Relay Assemblies use relays tested to UL508A SCCR standards.
-
Current Ratings from 0.1A to 50A
-
Zero Cross Relays
-
Output voltages from 24Vac to 660Vac
-
Standard DC or AC Control Versions
-
Standard LED Status Indicator Regulated Inputs- Back to Back SCR Design
-
Standard Built in Transient Protection
-
Standard Relays, UL/cUL Recognized, TUV Approved & CE Compliant Version,
-
IP20 Touch Safe SSR Monitor Cards Available, add suffix (-MON2)
SPECIFICATIONS
PART NUMBER
IP00
PART NUMBER
IP20
INPUT
RANGE
LOAD CURRENT
LINE
VOLTAGE
TRANSIENT VOLTAGE
APC4030P
APC4031P
APC4032P
APC4130P
APC4131P
APC7030P
APC7031P
90-280Vac
.1A-50A @40 Degrees C Ambient
24-280Vac
600V Peak
APC7032P
APC7130P
APC7131P
APC7132P
18-36Vac
3-32Vdc
90-280Vac
18-36Vac
3-32Vdc
.1A-50A @40 Degrees C Ambient
.1A-50A @40 Degrees C Ambient
.1A-50A @40 Degrees C Ambient
.1A-50A @40 Degrees C Ambient
.1A-50A @40 Degrees C Ambient
24-280Vac
24-280Vac
48-660Vac
48-660Vac
48-660Vac
600V Peak
600V Peak
1200V Peak
1200V Peak
1200V Peak
Notes:
-
Ratings based upon 100% duty cycle for 20 minutes or 80% duty cycle continuous.
-
Ratings are based upon relays being mounted either individually or side by side with zero spacing.
-
Cool One's unique construction allows better performance than conventional heat sink designs even when mounted side by side.
-
Monitor Output faults or load alarms with Anacon's SSR Monitor Cards available for all DIN mount IP00 relays. See APC MON datasheet for details.
MECHANICAL DRAWINGS

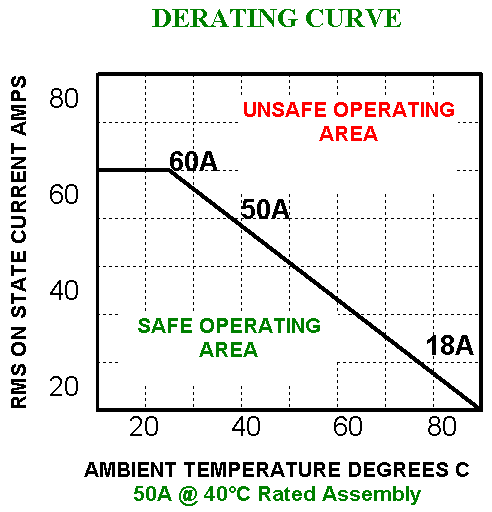

THERMAL CURVE
