Dual 50AMP Rated Assembly
"COOL ONE" Dual Panel Mount Solid State Relay Assembly (SSR)
(25AMP per Relay)
Anacon's "Cool One" Power Solid State Relay Assemblies are built to perform in a wide variety of industrial control applications. High performance Solid State Relays and thermally correct heat sinks are selected to insure trouble free service. The listings below provide the actual load currents that each part type will support. If you're not sure about how to select the correct product for your application, call Anacon (800-466-9080), toll free and discuss your application with us.
Standard "Cool One" Features:
-
All Anacon Solid State Relay Assemblies use relays tested to UL508A SCCR standards.
-
Current Ratings from 0.1A to 25A/Relay
-
Zero Cross & Random Turn On Relays
-
Regulated Inputs - Back to Back SCR Design
-
Standard Relays, UL/cUL Recognized, TUV Approved & CE Compliant Version
-
IP20 Built-in Touch Safe features
-
Strip Wire Connections
SPECIFICATIONS
PART NUMBER
INPUT
RANGE
TERMINAL TYPE
LOAD CURRENT
LINE
VOLTAGE
OPERATING FEATURE
TRANSIENT VOLTAGE
APC7120DP
3-32Vdc
Stripped Wire IP20
48-660Vac
.1A-25A/Relay @
40 Degrees C Ambient
Zero Cross
90-280Vac
Stripped Wire IP20
.1A-25A/Relay @
40 Degrees C Ambient
48-660Vac
3-32Vdc
Ring Terminal
.1A-25A/Relay @
40 Degrees C Ambient
24-280Vac
600V Peak
Ring Terminal
.1A-25A/Relay @
40 Degrees C Ambient
24-280Vac
600V Peak
1200V Peak
1200V Peak
Zero Cross
Zero Cross
Zero Cross
90-280Vac
APC7121DP
APC4120DP
APC4121DP
Notes:
-
Combined output current must not exceed 50 amps.
-
Ratings based upon 100% duty cycle for 20 minutes or 80% duty cycle continuous.
-
Ratings based upon relays being mounted either individually or side by side with zero spacing.
-
Ring terminal versions available with Touch Safe Covers upon request.
-
For random turn on version P/N's, call 800-466-9080.
-
Cool One's unique construction allows better performance than conventional heat sink designs even when mounted side by side.
-
Monitor Output faults or load alarms with Anacon's SSR Monitor Cards available for all DIN mount relays. See APC MON datasheet for details.

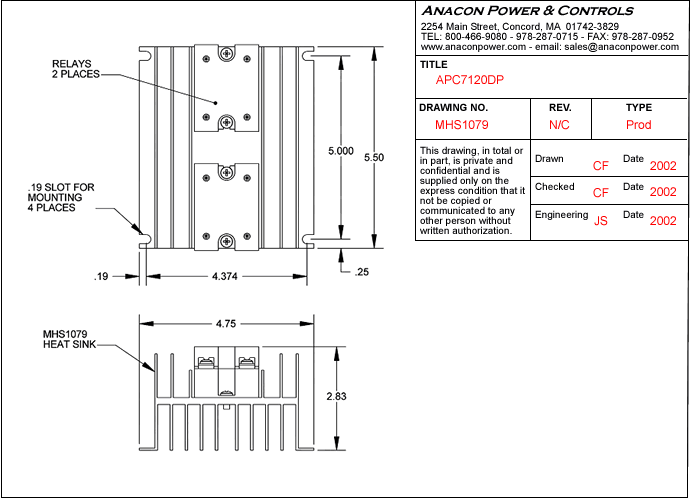

MECHANICAL DRAWING
THERMAL CURVE
