DIN and Panel Mount Heat Sinks
PART
NUMBER
MSA DIN45-1
DESCRIPTION
DIN Mount, Single SSR, 50W Max
THERMAL RATING
1.7 Degrees C/Watt
Delta T= 50 Degrees C
DIMENSIONS
MECHANICAL DRAWING/PHOTO
3.05" x 1.75" x 3.25"
MSA5000
DIN Mount, 1or 2 Phase SSR, 90W Max
0.8 Degrees C/Watt
5.2" x 3.00" x 2.8"
MSA8651
DIN Mount, 1, 2, or 3 Phase SSR, 90W Max
0.8 Degrees C/Watt
5.2" x 3.00" x 2.8"
MHS1052
Panel Mount,
Single SSR
0.8 Degrees C/Watt
5.2" x 3.0" x 2.4"
MHS1070
Panel Mount, 1, 2, or 3 Phase SSR, 90W Max
0.8 Degrees C/Watt
5.2" x 3.0" x 2.4"

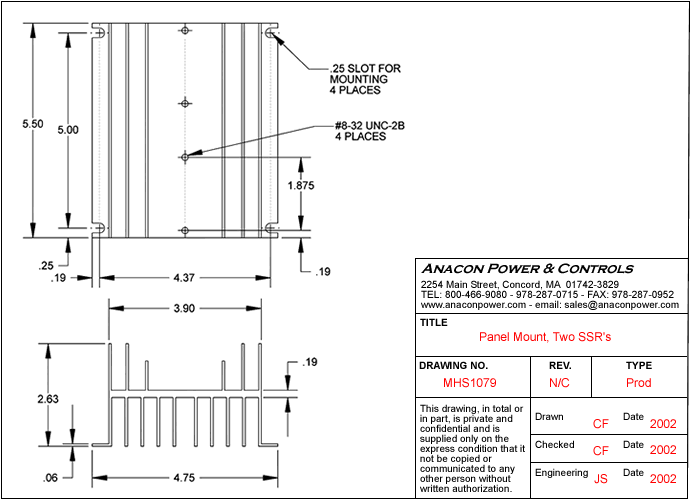

MHS1079
Panel Mount,
Two SSR's
0.8 Degrees C/Watt
5.5" x 4.7" x 2.8"
MHS1088
Panel Mount,
Single SSR
0.8 Degrees C/Watt
6.0" x 4.7" x 2.63"

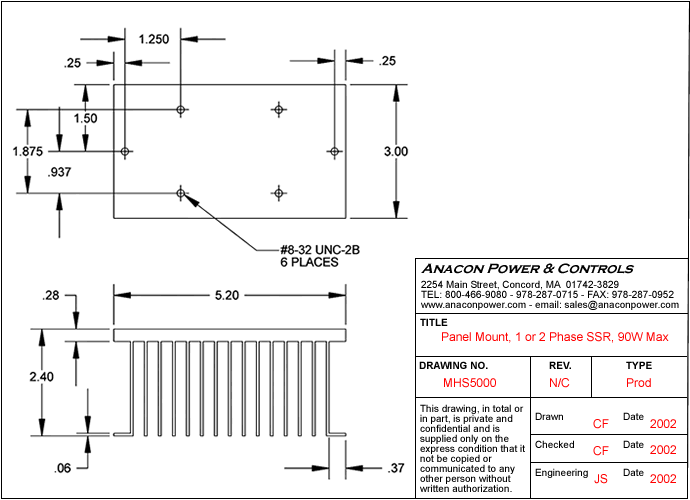

MHS5000
MHS5050
Panel Mount, 1 or 2 Phase SSR, 90W Max
5.2" x 3.00" x 2.8"
0.8 Degrees C/Watt
Panel Mount, 1, 2, or
3 Phase SSR,
120W Max
0.4 Degrees C/Watt
6" x 6" x 3.5"

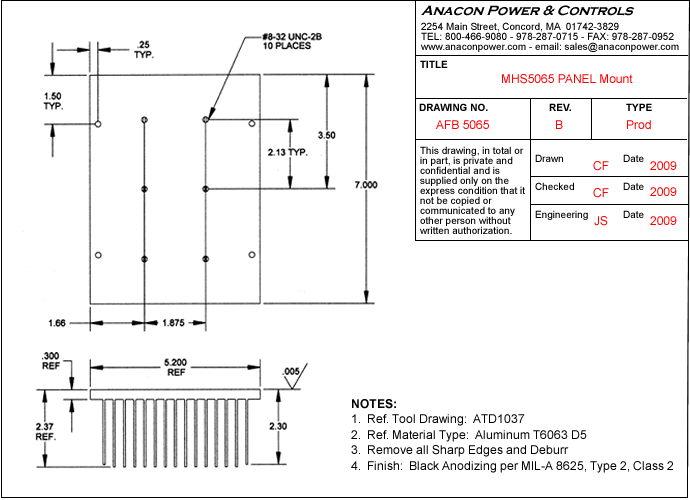

MHS5065
Thru Panel Single,
Dual and Triple SSR or
SCR Controller Assembly up to 150W
0.54 Degrees C/Watt
5.2" x 7.0" x 2.5"
